FRACMASTER Twin cement pumping unit F-I & F-II

	Basic Data	Remarks
Equipment	Twin Cement Pumping Unit
Manufacturer	Fracmaster
Model	090
Year of production	1988
Max.working preassure	560bars	8160psi
Max. pumping rate	3200 dm3/min	20,1bbl/min
Plunger pumps (2 pcs.)	SPM TWS-600
Max. W.P.	560bars	8160psi
Max. pumping rate	1600 dm3/min	10,1bbl/min
Deck engines (2 pcs.)	GM 12V-71
H.P.	480KS/2100 min-1
Transmission(2 pcs.)	Allison CLT-755
Deck Engine	GM 12V-71
Booster C. Pump	Mission 6x5x12	Driven by Commercial Shearting M51 hydraulic motor
Jet Mixing System	Low pressure
Mixing C.pump	Mission 2x3x13	Driven by Volvo hydraulic motor
Driving enginr	GM 8V-71	Truck engine
Metering Tanks (2pcs.)	2 x 1600 dm3	2×10,1bbl



Truck	IHC, 6X6
Type	COF5870 Cab Over
Manufacturer	International
Truck Engine	GM 8V71
H.P.	304bhp2100 min-1
Transmission	Allison, HT 750DR

SEMTwin cement pumping unit

	Basic Data	Remarks
Equipment	Twin Cement Pumping Unit	W/ Data Acquisition end Computing System.
Manufacturer	Special Equipment Manufacturing Inc.USA	Supplier: Enserv
Year of production	2006.
Max.working preassure	770bars	11200psi
Max. pumping rate	3180 dm3/min	20,1bbl/min
Plunger pumps (2 pcs.)	HT-400
Max. W.P.	770bars	20bbl/min
Max. pumping rate	1590 dm3/min	10bbl/min
Booster C. Pump	Mission 6x5x14	Hydraulically driven
Deck engines (2 pcs.)	CAT-15
H.P.	565bhp/2100 min-1
Transmission(2 pcs.)	Allison M5610
Ground Jet Mixer	Low pressure	w/ rotary  jet
Mixing C.pump	Mission 3x2x13	Hydraulically driven
	Mission 4x3x13	Mixing pump hydraulically driven
High energy Mixer	Mission 5x4x14	Recirculating pump,hydraulically driven

Cement mixing trailer

	Basic Data	Remarks
Manufacturer	TEM  ROLLIGON
Name	Cement Mixer Trailer
Model	CMF-260
Year of production	2008
Vehicle	Semitrailer
Mixing tanks capacity	2 x 1,11 m3
Length	7340 mm
Width	2490mm
Height	3750mm
Weight	11676
Drive engine	Caterpillar C-7 Diesel Engine
Centrifugal pumps	Mix water pump, booster pump and recirculation pump	Mission 3×4 and  2 x Mission 4 x5

Portable Bulk Cement Silo Plant

	SILO	Up to 6
Producer	Rade Končar
Type	TSC -18
Height	6200 mm
Width (Diameter)	2500 mm
Volume	18 m3
Capacity	25 t
Loading	Pressurized
Max. discharge capacity	1500 – 2000 kg/min
COMPRESOR	Trailer mounted	2
Producer	Fagram
Max. pressure	6 bar
Max. capacity	230 dm3/s
Working pressure	3 bar
Max. working pressure	3,5 bar
Length	3762 mm
Width	1650 mm
Height	1615 mm
Engine	Four-stroke diesel
Type	F5L413FR



	BULK STORAGE AND HANDLING PLANT	PSC
RECEIVING TANK		1
Height	3020 mm
Width	2000 mm
Volume	2,65 m3
Capacity	3,8 t
COMPRESOR	Trailer mounted	1
Height	3700 mm
Width	2340 mm x 2340 mm
Volume	1,7 m3
Capacity	2,5 t

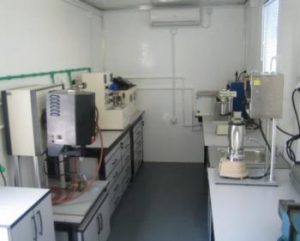

Mobile Cement Lab

Lab   eqiupments:

• Thickening time tester
• Fluid- loss test apparature
• Rheological equipment
• Curing chamber
• Compressive strength tester
• Preparation of cement slurry
• Scale
• Sampling
• Balance
• Portable  cement  laboratory
